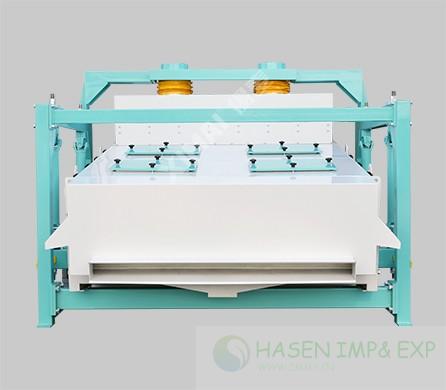

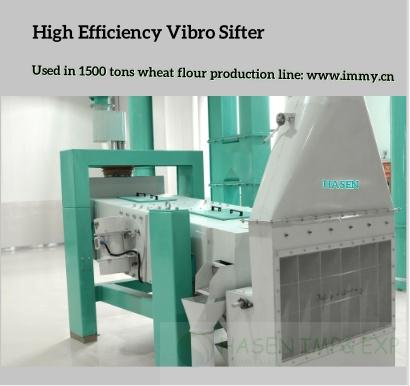

Planar Rotary Sifter

Planar Rotary Sifter

Planar Rotary Sifter in combination with primary screening is one of the solutions for first stage of grain and oil cleaning. www.immy.cn/www.immyhitech.com

PLANAR ROTARY SIFTER in combination with primary screening is best solutions for grain cleaning。

Plane rotary screen is mainly used for cleaning or grading raw materials in milling, feed, rice milling, chemical industry, and oil extraction industries. By replacing different meshes of sieves, it can clean impurities in wheat, corn, rice, oil seed and other granular materials.

Main structure and working principle

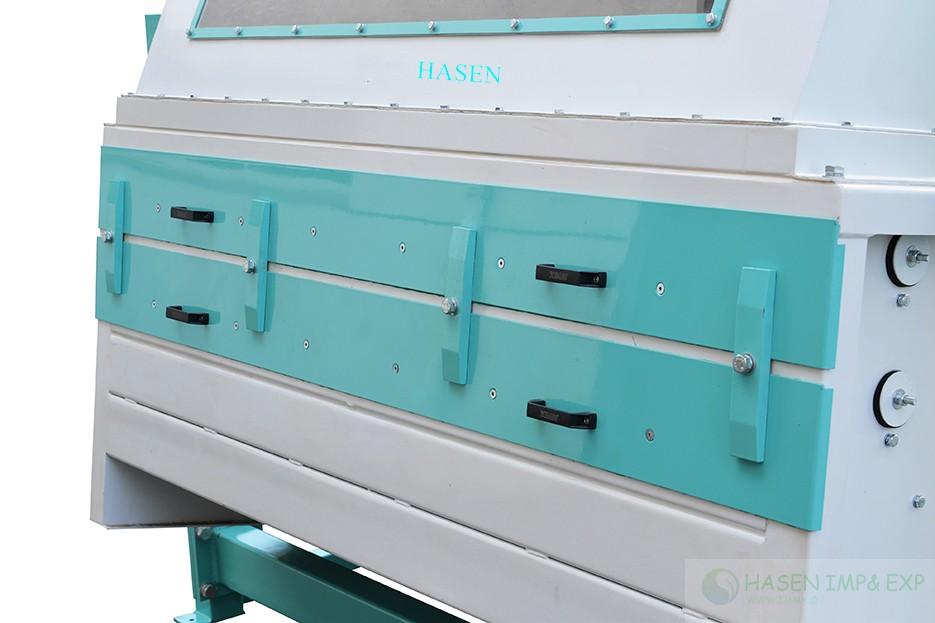

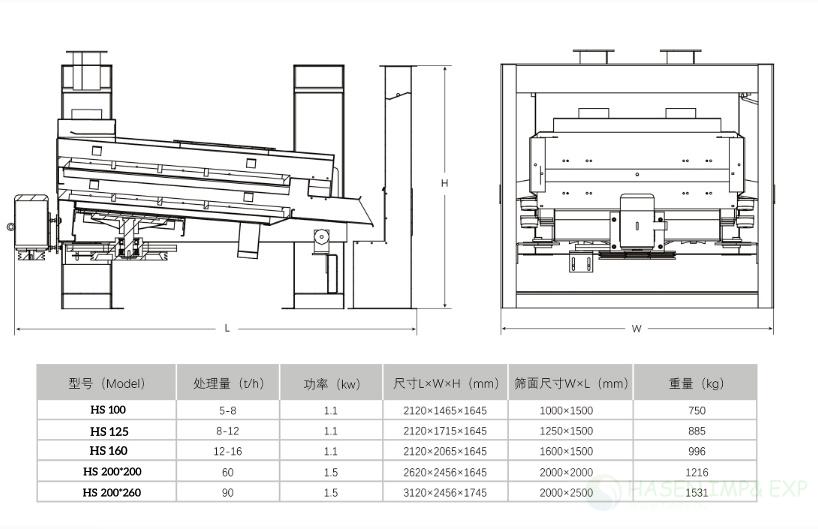

Equipment consists of frame, sieve, drawer-type sieve frame, single shaft vibrator, electric motor, suspender rod and other components.

Main component of rotary screen is the inclined screen surface , and every point on the sieve makes plane circular motion, and the material slide down in spiral by gravity on the sieve surface, and with the automatic grading property of the material, different sizes of impurities from the raw material are separated.

Feature

The screen is wide and the flow is big, cleaning efficiency is high, flat rotation movement is stable with low noise.

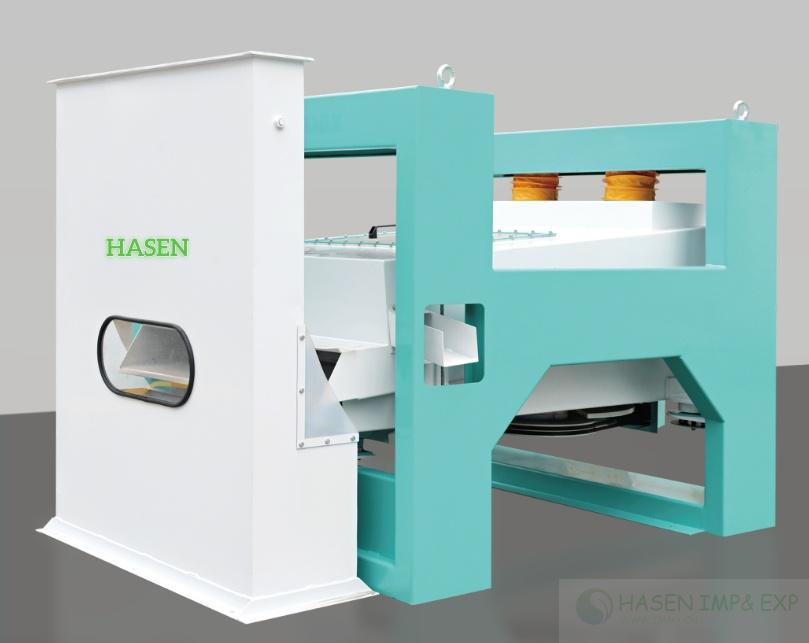

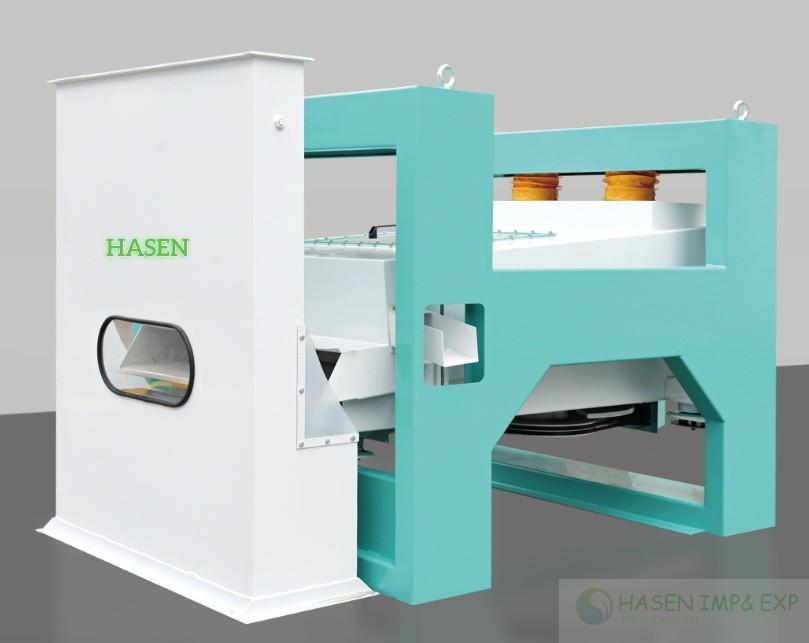

Equipped with aspiration channel, it performs with clean environment.

Sieve plate

The sieve plate is made of high quality steel plate, its hole size is designed according to per processing need, easy for assembling.

Ball cleaner:
In the screening process, sieve cleaning is important to promise effective grading. This machine adopts medium hardness Rubber Ball cleaning with low blockage rate.

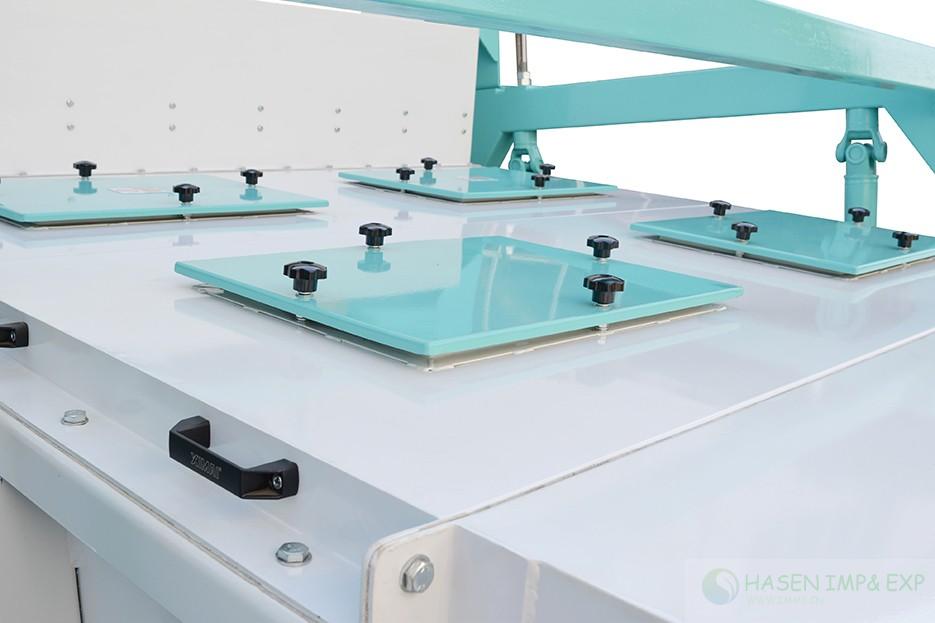

Observation window
The upper observation window is convenient to check and clean the sieve surface.

Transmission part:
The motor is fixed under the bottom part of the machine, the pulley is driven by the belt, and the fan block in the pulley can increase or decrease the phase to adjust the rotary diameter of the sieve body. After start-up, the inertial centrifugal force of the block makes the front part of the sieve body produce a plane rotation motion, and the back part appears to reciprocating linear motion.

Stainless steel rope

Stainless steel rope guarantee safety.
